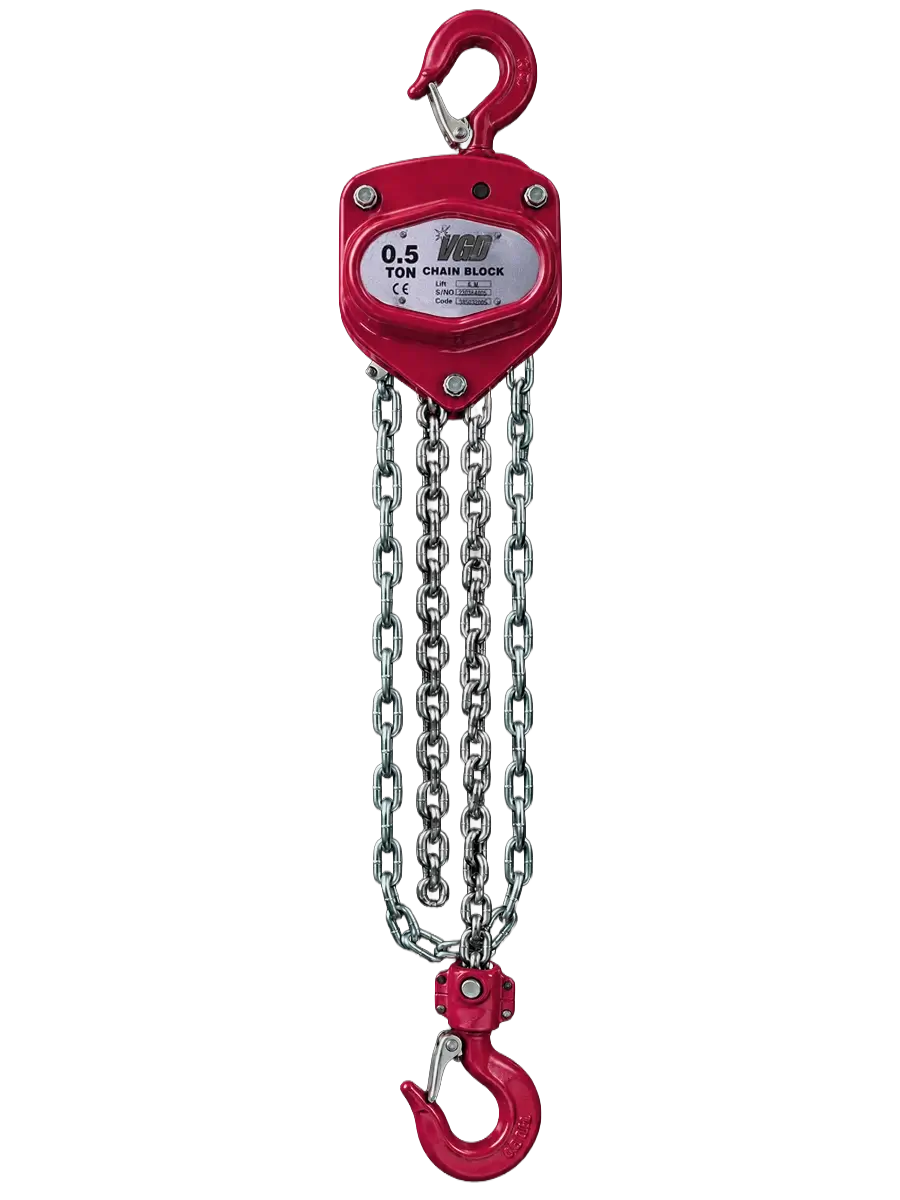

VCHA050
1/2
TonWorking Load Limit 1,000 lb
VQ Material Handling
Red Beast Chain Hoist
Rugged all-steel construction for smooth, controlled vertical lifting. The Red Beast combines Grade 100 load chain, roller-bearing construction, rotating hooks and a double-pawl braking system for dependable operation in industrial, construction and maintenance applications.
1/2 Through 10 Ton Capacities
10 and 20 ft Standard Lifts
Grade 100 Load Chain
Custom Lengths Available
Double-Pawl Brake
Dual pawls support dependable load control
Proof Tested
Every hoist individually tested
Serialized
Unique serial number and certificate supplied
ASME B30.16
Designed for applicable manual-hoist requirements
Select the Right Hoist
Seven Lifting Capacities
Red Beast chain hoists are available from 1/2 through 10 tons with standard 10 and 20 ft lifts. Select a capacity that meets or exceeds the maximum load and confirm the complete application before use.
VCHA100
1
TonWorking Load Limit 2,000 lb
VCHA150
1-1/2
TonWorking Load Limit 3,000 lb
VCHA200
2
TonWorking Load Limit 4,000 lb
VCHA300
3
TonWorking Load Limit 6,000 lb
VCHA500
5
TonWorking Load Limit 10,000 lb
VCHA101
10
TonWorking Load Limit 20,000 lb
Standard Lift
10 ft
Standard product codes available across the capacity range
Extended Lift
20 ft
Published extended-lift configurations are also available
Application Specific
Custom Lengths
Contact Vancouver for custom chain-length requirements
View Product Codes and Chain Specifications Complete 10 and 20 ft product codes, capacities and chain sizes.
Product codes identify the standard lift configuration. Confirm capacity, lift, available headroom and required installation details before ordering or placing a hoist into service.
| Model | Capacity | Lift | Product Code | Working Load Limit | Load Chain | Hand Chain |
|---|---|---|---|---|---|---|
| 10 ft Standard Lift | ||||||
| VCHA050 | 1/2 ton | 10 ft | 385031005 | 1,000 lb | 6 × 18 mm | 5 × 25 mm |
| VCHA100 | 1 ton | 10 ft | 385031010 | 2,000 lb | 6 × 18 mm | 5 × 25 mm |
| VCHA150 | 1-1/2 ton | 10 ft | 385031015 | 3,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA200 | 2 ton | 10 ft | 385031020 | 4,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA300 | 3 ton | 10 ft | 385031030 | 6,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA500 | 5 ton | 10 ft | 385031050 | 10,000 lb | 10 × 30 mm | 5 × 25 mm |
| VCHA101 | 10 ton | 10 ft | 385031100 | 20,000 lb | 10 × 30 mm | 5 × 25 mm |
| 20 ft Extended Lift | ||||||
| VCHA050 | 1/2 ton | 20 ft | 385032005 | 1,000 lb | 6 × 18 mm | 5 × 25 mm |
| VCHA100 | 1 ton | 20 ft | 385032010 | 2,000 lb | 6 × 18 mm | 5 × 25 mm |
| VCHA150 | 1-1/2 ton | 20 ft | 385032015 | 3,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA200 | 2 ton | 20 ft | 385032020 | 4,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA300 | 3 ton | 20 ft | 385032030 | 6,000 lb | 8 × 24 mm | 5 × 25 mm |
| VCHA500 | 5 ton | 20 ft | 385032050 | 10,000 lb | 10 × 30 mm | 5 × 25 mm |
| VCHA101 | 10 ton | 20 ft | 385032100 | 20,000 lb | 10 × 30 mm | 5 × 25 mm |
Need a different lift or help selecting capacity?
Contact the Vancouver team with the maximum load, required lift, available headroom and intended application.
Why Red Beast
Built Around the Parts That Matter
The Red Beast chain hoist is built around practical mechanical components that support controlled lifting, dependable braking and long service life in demanding industrial environments.
Construction 01
Compact All-Steel Construction
The rugged steel gear case and hand wheel provide a durable, compact housing designed for regular industrial lifting and material-handling work.
Construction 02
Hook and Cast Safety Latch
The hook and latch are designed to remain properly aligned. The cast latch provides durable protection at one of the hoist’s most frequently handled connection points.
Construction 03
Roller-Bearing Construction
Roller bearings support smoother mechanical operation and help reduce unnecessary friction within the hoist during regular lifting and lowering cycles.
Construction 04
Double-Pawl Braking System
Two brake pawls work with larger-diameter pawl springs to provide dependable engagement and controlled load handling during lifting and lowering.
Supplied for Demanding Work
Core features are included across the Red Beast chain-hoist range.
- Grade 100 load chain
- Roller-bearing construction
- Double pawls and double chain guides
- Rotating bottom hook under load
- 10 and 20 ft standard lifts
- Optional overload protection
Documented Quality Control
Manufactured by an ISO 9001 Certified Factory
Red Beast chain hoists are manufactured by an ISO 9001 certified factory that is a member of the Lifting Equipment Engineers Association. Each hoist is individually proof tested and supplied with a unique serial number and test certificate.
Always select a hoist with sufficient capacity for the complete application. Never exceed the marked working load limit. Read the operator manual and inspect the hoist before every use.
