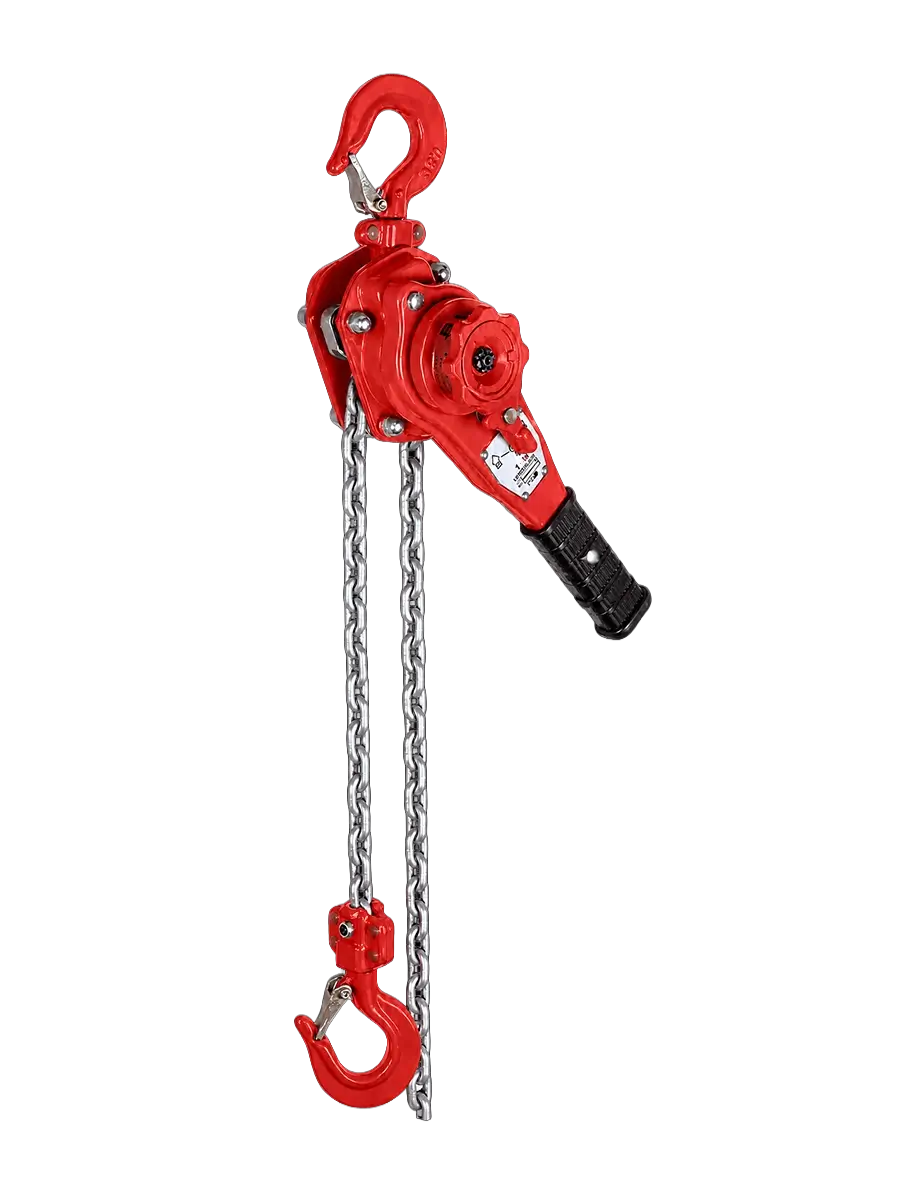

VQ - LEVER HOIST
RED BEAST SERIES
Product manual and blowout diagram with part numbers
Menu
Looking for a Chain?
Click here
- Compact and Tough -
Structurally designed for increased rigidity strengthens the body to withstand extreme loads efficiently. Hardened side plates help prolong chain wear by cutting down abrasion.
- Hook and Safety Latch -
Safety Latch alignment design integrates the hook with the latch to help strengthen and protect vulnerability points.
- Roller Bearings -
Sealed roller bearings-Greatly improving performance and serve life of the product.
- Fused Brake Disc -
The Ratchet disc and Friction Plate/Discs are fused together. This design greatly increases the brake service life and reduces wear and tear while offering greater oil repellent.
True Freewheel
The freewheel mode of the Red Beast lever hoist is designed to enhance operational efficiency and safety by disengaging the drive mechanism. Unlike other styles that may accidentally re-engage the unit, the freewheel mode prevents frustration and interruptions while setting the load chain length. This feature ensures that the hoist remains in the desired mode until intentionally changed by the operator, eliminating the need to constantly return to the unit to release the brakes. By providing a seamless and controlled lifting experience, the freewheel mode on the Red Beast lever hoist enhances productivity and minimizes downtime, making it an invaluable tool for professionals in various industries.
We’ll showcase the versatile freewheel mode of the Red Beast lever hoist in lifting operations.”
Freewheel Activation:
To activate the freewheel mode, follow these simple steps:
- Step one: Move the direction selector into the neutral position.
- Step two: Pull the wheel knob away from the body. This disengages the internal mechanism, allowing the chain to roll freely upward and downward.”
Freewheel Mechanism Explanation:
Notice that attempting to push the knob straight in won’t work. The internal mechanism is purposely offset about 1/3 of a turn to prevent accidental engagement during this operation.
Reengaging the Lever:
To reengage the lever, follow these steps:
- Stop the chain from moving by holding both lines of chain together.
- Turn the knob clockwise until it engages the hoist.
Now, the hoist is ready for operation. Use the direction lever to choose the desired lifting direction.”
Alternative Method for Reengagement:
Alternatively, if there’s a load on the hook:
- Tighten the load chain until it stops the chain from moving.
- Roll the wheel knob until it drops into gear.
Again, use the direction lever to select the desired lifting direction.”
With its user-friendly freewheel mode and safety features, the Red Beast lever hoist ensures smooth and controlled lifting operations, making it the preferred choice for professionals in various industries.”
dimensional information
| Model | Part Number | WLL (t) | Lift (ft) | Proof Load (t) | Lever Force kg(n) (lbs) | Load Chain | Dimensions (mm) | N.W. (kg) | Additional Weight Per Lift (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Falls | Size | H | A | B | C | D | L | kg | |||||||
| VLHK 08 | 3855-30508 | 0.8 | 5 | 1.2 | 22 (215)(48) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VLHK 10 | 3855-30510 | 1.0 | 5 | 1.5 | 30 (294)(66) | 1 | 5.6x15.7 | 300 | 150 | 100 | 119 | 24 | 245 | 6.3 | 0.7 |
| VLHK 16 | 3855-30516 | 1.6 | 5 | 2.4 | 31 (304)(68) | 1 | 7.1x19.9 | 350 | 168 | 104 | 126 | 32 | 265 | 8.5 | 1.1 |
| VLHK 32 | 3855-30532 | 3.2 | 5 | 4.8 | 38 (372)(84) | 1 | 10x28 | 395 | 201 | 118 | 159 | 35 | 415 | 14.2 | 2.3 |
| VLHK 08 | 3855-31008 | 0.8 | 10 | 1.2 | 22 (215)(48) | 1 | 5.6x15.7 | ||||||||
| VLHK 10 | 3855-31010 | 1.0 | 10 | 1.5 | 30 (294)(66) | 1 | 5.6x15.7 | ||||||||
| VLHK 16 | 3855-31016 | 1.6 | 10 | 2.4 | 31 (304)(68) | 1 | 7.1x19.9 | ||||||||
| VLHK 32 | 3855-31032 | 3.2 | 10 | 4.8 | 38 (372)(84) | 1 | 10x28 | ||||||||
| VLHK 08 | 3855-31508 | 0.8 | 15 | 1.2 | 22 (215)(48) | 1 | 5.6x15.7 | ||||||||
| VLHK 10 | 3855-31510 | 1.0 | 15 | 1.5 | 30 (294)(66) | 1 | 5.6x15.7 | ||||||||
| VLHK 16 | 3855-31516 | 1.6 | 15 | 2.4 | 31 (304)(68) | 1 | 7.1x19.9 | ||||||||
| VLHK 32 | 3855-31532 | 3.2 | 15 | 4.8 | 38 (372)(84) | 1 | 10x28 | ||||||||
Custom Lengths Available on Request
| WARNING: | NEVER EXCEED WORKING LOAD LIMIT | |||||||||
| INSPECT ALL COMPONENTS FREQUENTLY FOR SIGNS OF WEAR OR DAMAGE | ||||||||||
| KEEP LOAD CHAINS LUBRICATED | ||||||||||
Thank you so much for taking the time to review our lever hoists. We greatly appreciate your feedback and are thrilled to hear that you are satisfied with our product. Your review helps us improve and continue providing high-quality equipment to our valued customers. We look forward to serving you again in the future. Thanks for choosing our RED BEAST lever hoists!
Compact and Light Weight Combined
TECH SPECS AND FEATURES
| VGD VLHK | KITO LB | CM BANDIT | |
|---|---|---|---|
| Spring loaded free-wheel mechanism | √ | √ | √ |
| Smooth/Easy chain free wheeling | √ | √ | √ |
| Weston style braking | √ | √ | √ |
| No Pre-Loading required. Automatic brake engagement | √ | √ | √ |
| Fused Brake Disc | √ | x | √ |
| Load Test Grade 100 Chain | Dichromated Finish | Zinc | Zinc |
| Bolt on integrated hooks with cast latches | √ | √ | √ |
| Top and Bottom hooks rotate 360Deg | √ | √ | √ |
| Each hoist proof tested & comes with unique serial number and hoist certificate | √ | √ | √ |
| Overload Protection/Load Limiter | Optional | Optional | Optional |
| Meet ASME B30.21 Safety standards | √ | √ | √ |
| Manufactured at on ISO 9001-2001 certified factory | √ | √ | √ |
| VQ Part Numer | HOIST WEIGHT COMPARISON | VLHK | KITO LB | BANDIT |
|---|---|---|---|---|
| 3855-30508 | .8T x 5′ Lift | 12.6Lbs | 13Lbs | 13.6Lbs |
| 3855-30510 | 1T x 5′ Lift | 13Lbs | N/A | N/A |
| 3855-30516 | 1.6T x 5′ Lift | 17.63Lbs | 18Lbs | 20.7Lbs |
| 3855-30532 | 3.2T x 5′ Lift | 29.98Lbs | 35Lbs | 38.3Lbs |
| VQ Part Number | Hoist Size | VQ Part Number | Hoist Size |
|---|---|---|---|
| 3855-31008 | .8T x 10ft | 3855-31508 | .8Ton x 15ft |
| 3855-31010 | 1Ton x 10ft | 3855-31510 | 1Ton x 15ft |
| 3855-31016 | 1.6Ton x 10ft | 3855-31516 | 1.6Ton x 15ft |
| 3855-31032 | 3.2Ton x 10ft | 3855-31532 | 3.2Ton x 15ft |
| Custom length available upon request |
VQ LEVER HOIST REPLACEMET PARTS
OPERATION VIDEO
Welcome
We will be exploring the features and benefits of the RED BEAST manual hoist. If you’re in need of a reliable and powerful hoisting solution, then you’ve come to the right place. The RED BEAST manual hoist is designed to meet your highest expectations when it comes to quality and performance. Let’s dive in and take a closer look!
One of the standout features of the RED BEAST manual hoist is its exceptional build quality. Made from high-grade materials, this hoist is sturdy and durable, ensuring that it will be able to handle even the toughest lifting tasks. Whether you’re working in a warehouse, construction site, or any other industrial setting, you can rely on the RED BEAST manual hoist to get the job done with ease.
In addition to its robust construction, the RED BEAST manual hoist offers exceptional performance. Equipped with a powerful mechanical system, this hoist provides smooth and efficient lifting, allowing you to easily and safely move heavy loads. Its ergonomic design ensures comfortable operation, reducing fatigue and improving productivity.
The RED BEAST manual hoist also excels in terms of safety. It features a reliable braking system that ensures secure load holding, preventing any accidental drops. Additionally, if equipped with a load limiter, it provides an extra layer of protection by preventing overloading and preventing potential accidents. With the RED BEAST manual hoist, you can have peace of mind knowing that your safety is always a top priority.
Versatility is another key aspect of the RED BEAST manual hoist. It is available in various lifting capacities, allowing you to choose the perfect hoist for your specific needs. Whether you need to lift a few hundred pounds or several tons, there’s a RED BEAST manual hoist that’s suitable for your application.
In conclusion, the RED BEAST manual hoist is a reliable and powerful hoisting solution that exceeds expectations in terms of quality and performance. With its exceptional build quality, smooth operation, and advanced safety features, this hoist is the perfect choice for any heavy lifting task. So why settle for anything less when you can have the RED BEAST manual hoist by your side? Upgrade your lifting capabilities today and experience the difference for yourself!
